Ccna chapter 4 exam answers
Focus on gaining a deep understanding of IP addressing and subnetting. This is a foundational skill that will appear frequently throughout your studies and practical applications. Being able to efficiently calculate network and broadcast addresses will give you the upper hand in troubleshooting and network configuration tasks. Familiarize yourself with different subnet masks and CIDR notation, as these are key to efficiently managing network resources.
Understand routing protocols and their differences, especially when it comes to choosing the right protocol for a specific network setup. Study how static and dynamic routing work, and practice configuring routers to ensure smooth data flow across various network segments. Grasping concepts like RIP, OSPF, and EIGRP will help you design scalable and adaptable networks.
Hands-on practice is another critical element. Use simulators and real equipment to gain practical experience in configuring network devices, ensuring you are comfortable with the setup process and identifying issues quickly. The more you practice, the more confident you’ll be in real-world network environments.
CCNA Chapter 4 Exam Answers: A Practical Guide
To approach the material, focus on these core topics:
- Subnetting: Practice identifying network addresses, broadcast addresses, and usable IP ranges. Mastering binary-to-decimal conversion is crucial for speed.
- Routing: Understand the different routing protocols (such as RIP, OSPF, and EIGRP) and their characteristics, including convergence time and scalability.
- IP Addressing: Be able to efficiently determine subnet masks and address classes. Know the difference between public and private address ranges.
- TCP/IP Model: Study each layer and its associated protocols (e.g., IP, ARP, TCP). Know how they interact in real-world networking.
For each scenario, perform a quick analysis of the problem and verify if the configuration aligns with the given requirements. When setting up devices, double-check routing tables and access control lists to ensure proper communication across networks.
Practice configurations in simulation environments or with packet-tracing tools to build hands-on experience. This will help you troubleshoot faster under exam conditions.
Understanding Network Access Layer Concepts
Network access layer is responsible for providing devices access to the network. It plays a critical role in connecting end-user devices to the broader network infrastructure.
- Media Access Control (MAC) Addresses: Devices on the network are identified by their MAC addresses. These are used by the network access layer to forward data frames to the correct device.
- Switching Technologies: Devices use switches to forward frames within the same local area network (LAN). Layer 2 switches operate at this level, using MAC addresses to direct traffic.
- Physical Layer Protocols: Various protocols define how data is transmitted over physical media, such as Ethernet or Wi-Fi. Understanding the differences in these protocols helps in optimizing network design.
- Access Control: This layer ensures that only authorized devices can join the network. Technologies like port security and 802.1X are used to enforce access policies.
- Network Interface Cards (NICs): NICs are hardware components that facilitate communication between devices and the network. They must be properly configured for successful data transmission.
To ensure smooth operation, focus on the correct configuration of switches, the proper assignment of IP addresses, and the appropriate security measures to limit unauthorized access.
How to Configure VLANs for Exam Success
Configure VLANs by first ensuring that each switch port is assigned to the correct VLAN using the switchport mode access command. Specify the VLAN number with switchport access vlan [VLAN_ID], where [VLAN_ID] represents the VLAN you are working with. This allows traffic to be properly segregated based on the assigned VLAN.
To enable inter-VLAN communication, configure a router-on-a-stick setup. Assign a subinterface on the router with the command interface gigabitEthernet 0/0.10, where 10 is the VLAN ID. Use encapsulation dot1Q [VLAN_ID] to define the tagging protocol for each VLAN.
To verify the VLAN configuration, use the show vlan brief command on the switch. This command will display the VLAN assignments and their associated ports. Ensure that all the ports are mapped correctly to their respective VLANs.
For more complex configurations, such as trunking, use switchport mode trunk on the port connected to another switch. Then, configure the router’s subinterfaces to allow multiple VLANs by specifying the encapsulation method with encapsulation dot1Q [VLAN_ID].
Finally, test connectivity between devices in different VLANs to confirm the routing functionality is working as expected. Use ping between devices in different VLANs to ensure they can communicate through the router interface.
Mastering Spanning Tree Protocol for CCNA Chapter 4
To configure Spanning Tree Protocol (STP) on a network, first enable it globally on the switches. The default mode is Rapid PVST+, which ensures each VLAN has a separate spanning tree. Use the spanning-tree mode pvst command to configure PVST+ on Cisco devices.
Identify the root bridge by using the show spanning-tree command. The switch with the lowest bridge ID becomes the root bridge. To manipulate the root bridge election, configure the spanning-tree vlan [VLAN_ID] priority [value] command on the preferred switch. A lower priority value makes the switch more likely to become the root.
To avoid network loops, configure port roles with root port and designated port. The root port is the path to the root bridge, while the designated port is the one used for forwarding traffic on each segment.
Use the show spanning-tree vlan [VLAN_ID] command to verify port roles, status, and blocking ports. This helps ensure STP is functioning properly and prevents potential network loops.
| STP Port Roles | Description |
|---|---|
| Root Port | Port leading to the root bridge. |
| Designated Port | Port forwarding traffic for a network segment. |
| Blocked Port | Port in blocking state to prevent network loops. |
To minimize downtime during topology changes, use the spanning-tree portfast command on access ports. This immediately transitions the port to the forwarding state, preventing delays during STP convergence.
Practice Subnetting for Real Exam Scenarios
Mastering subnetting is critical for passing network certifications. Begin by understanding IP classes and how subnet masks work. Practice calculating subnets using the “borrowing bits” method to determine network addresses, broadcast addresses, and the range of host IPs for each subnet.
To speed up your process, focus on converting between decimal and binary forms rapidly. Knowing how to identify subnet sizes and the corresponding number of hosts will save time in the exam. For example, recognize that a subnet with a /24 prefix provides 254 usable IP addresses, while a /30 subnet provides only 2.
Utilize subnetting calculators as a tool for verification, but ensure you can perform the calculations manually under time constraints. This skill is crucial for handling questions that require you to subnet without a calculator.
Use practice tests that simulate real scenarios, such as determining subnetting for various network requirements like IP allocation for a corporate office. Refer to resources like the Cisco Networking Academy (https://www.netacad.com/) for up-to-date, scenario-based practice exercises.
Implementing Inter-VLAN Routing in Network Configurations
To enable communication between different VLANs, configure a router with subinterfaces for each VLAN. Each subinterface should be assigned an IP address corresponding to its VLAN’s network. Use the encapsulation method, typically IEEE 802.1Q, to tag Ethernet frames with VLAN information as they pass through the router. This method allows multiple VLANs to share a single physical interface while maintaining separate traffic streams.
On the router, define subinterfaces by selecting an interface (such as FastEthernet or GigabitEthernet) and assigning it a unique VLAN identifier with the “encapsulation dot1Q” command. Each subinterface will require its own IP address to act as the default gateway for devices within that VLAN.
For example, if VLAN 10 is assigned to a subinterface Fa0/1.10, the configuration should look like this:
interface FastEthernet0/1.10 encapsulation dot1Q 10 ip address 192.168.10.1 255.255.255.0
Ensure routing is enabled on the router, usually through a dynamic routing protocol or static routing. If routing is not enabled, devices in separate VLANs will not be able to communicate with each other. For dynamic routing, configure a protocol such as OSPF or EIGRP, making sure it includes the network that contains the router’s subinterfaces.
Finally, check the switch configuration to ensure trunking is correctly set up. The router and switches must be connected via a trunk link to carry traffic from multiple VLANs. Use the “switchport mode trunk” command on the switch port that connects to the router.

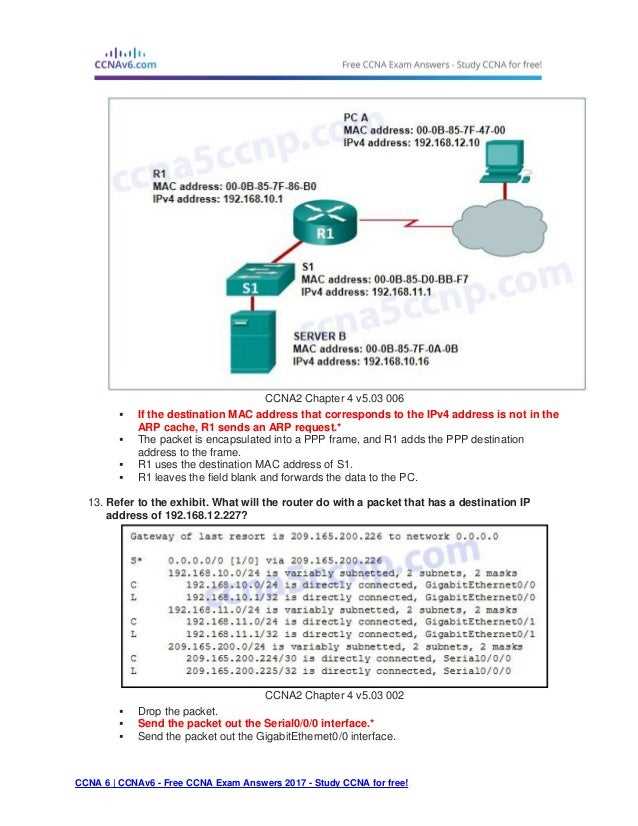

Key Troubleshooting Techniques for Chapter 4 Topics
Start by checking the physical connectivity of devices. Ensure all cables are securely connected and verify the status of LEDs on network devices. Often, physical issues are the root cause of network failures.
Use the “ping” command to test basic connectivity between devices. If a device cannot be pinged, isolate the problem by verifying IP configurations and checking for potential routing issues.
For Layer 3 problems, examine routing tables. Misconfigured routes or missing routes are frequent causes of connectivity issues. Utilize the “traceroute” command to identify where the packet drops along the path.
Inspect network interfaces for errors using the “show interfaces” command. High error rates, such as CRC errors or collisions, can indicate faulty cables, bad interfaces, or a misconfigured network.
For DNS-related issues, verify DNS settings and ensure the DNS server is reachable. Use “nslookup” to troubleshoot domain name resolution and confirm that proper records are configured.
In case of intermittent connectivity issues, check for duplex mismatches or speed mismatches between devices. Mismatched configurations often lead to dropped packets and slow performance.
Use “show ip route” to check the routing table and confirm that all expected routes are present. If a route is missing, review the configuration for static routes or dynamic routing protocol settings.
