Mastering Free Body Diagrams: Unlocking the Answers to the Worksheet
If you’re studying physics or any other science that involves the study of forces, you’ve probably come across free body diagrams. These diagrams are a way to visually represent the forces acting on an object and help determine the net force and acceleration of the object. To better understand and practice creating free body diagrams, many students use worksheets to guide their learning process.
However, working through these worksheets can sometimes be challenging, especially if you’re unsure about the correct answers. That’s why having access to free body diagrams worksheet answers can be incredibly helpful. These answers provide a step-by-step explanation of how to approach each problem, helping you check your work and learn from any mistakes you may have made.
By reviewing the free body diagrams worksheet answers, you can gain a better understanding of the concepts involved and build confidence in your ability to solve similar problems on your own. It’s important to remember that simply copying the answers without understanding the reasoning behind them won’t be as beneficial in the long run. Take the time to study and analyze the answers, and use them as a tool to enhance your understanding of free body diagrams.
What Are Free Body Diagrams?
A free body diagram is a visual representation used in physics to analyze the forces acting on an object. It shows all the forces acting on the object, including the direction and magnitude of each force. By breaking down the forces into separate vectors, free body diagrams allow physicists to analyze the motion and equilibrium of the object.
In a free body diagram, the object of interest is represented by a dot or a small box, and arrows are used to show the forces acting on it. The length of each arrow represents the magnitude of the force, while the direction of the arrow indicates the direction of the force. The forces are labeled with variables or names to identify them.
For example, if we consider a person standing on the ground, we can create a free body diagram to analyze the forces acting on the person. The weight of the person, acting downwards, would be represented by a downward arrow labeled “W.” If the person is pushing against the ground, we can represent this force with an upward arrow labeled “N” for the normal force.
Free body diagrams are essential tools for understanding and solving problems in physics. They help us visualize and analyze the different forces acting on an object, enabling us to determine its motion and equilibrium. By using free body diagrams, physicists are able to accurately describe and predict the behavior of objects in various situations.

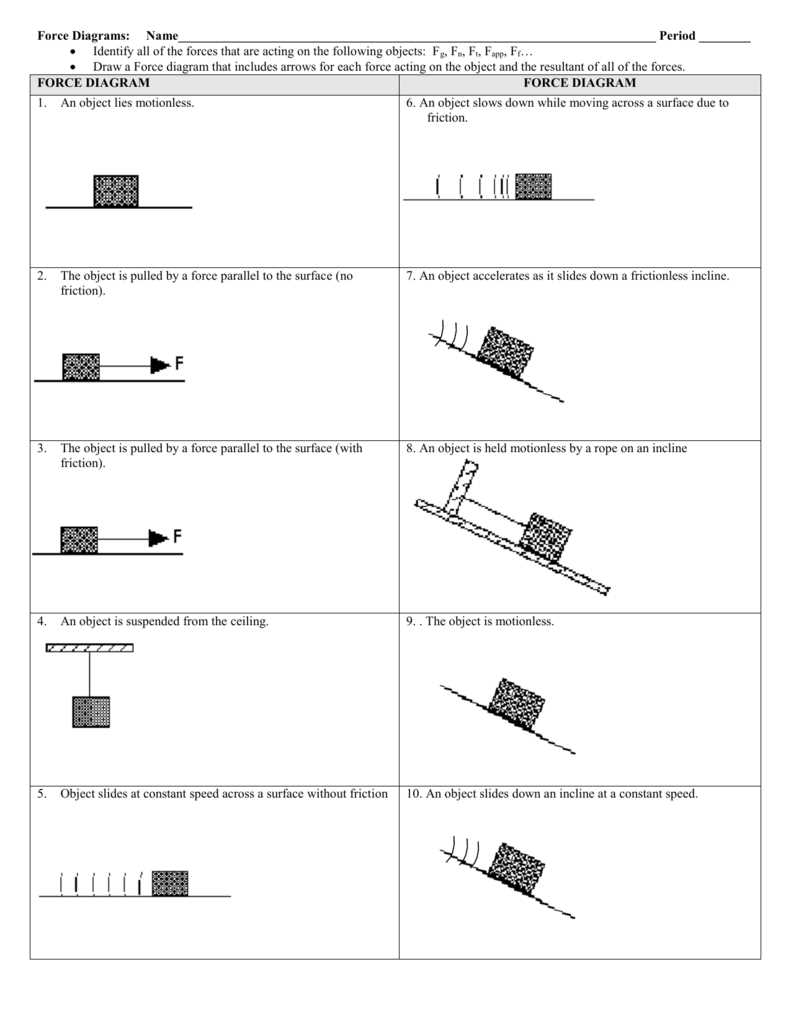

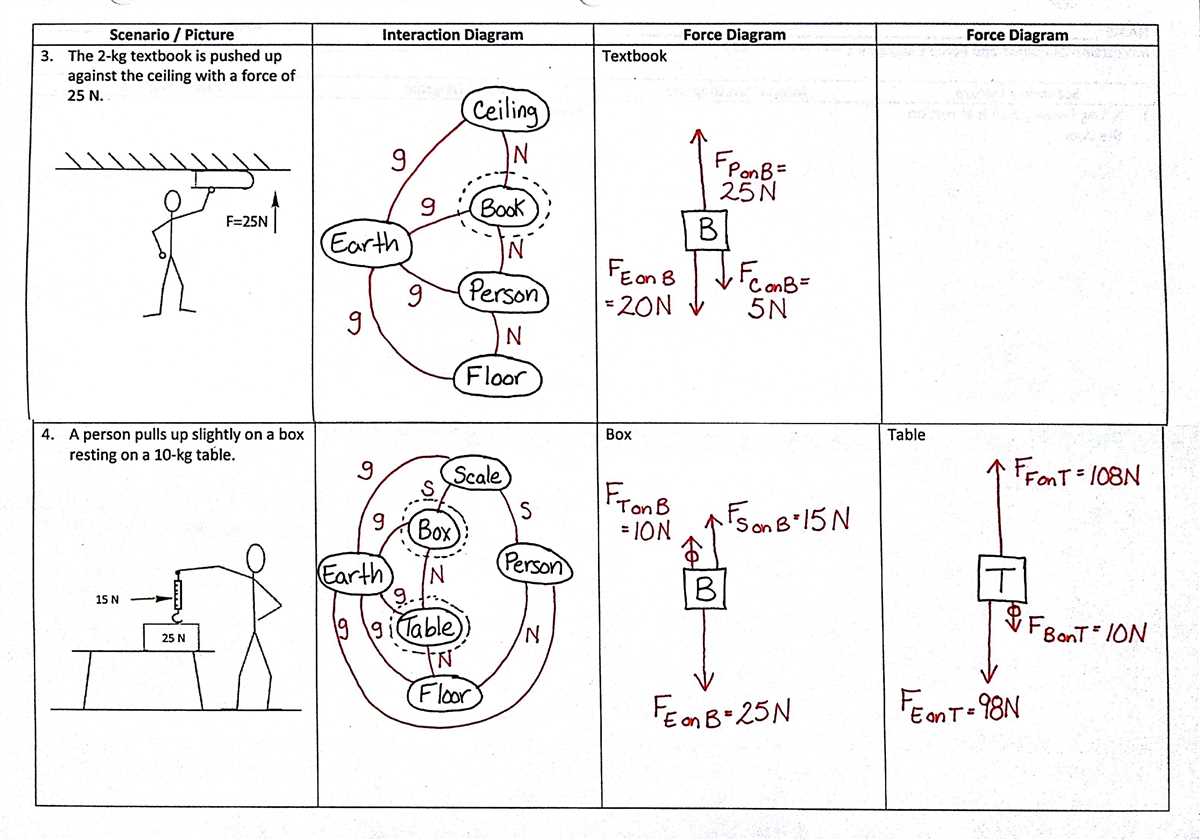

Overview of Free Body Diagrams and Their Importance in Physics
Free body diagrams are a critical tool in the study of physics. They provide a visual representation of the forces acting on an object, allowing us to analyze and understand the motion and equilibrium of the object. By isolating an object and representing all the forces acting on it, free body diagrams help us determine the net force and its effect on the object’s motion.
When creating a free body diagram, it is essential to identify all the forces acting on the object. These forces include gravity, friction, normal force, tension, and any applied or external forces. Each force is represented by an arrow, indicating its magnitude and direction. The length of the arrow represents the force’s magnitude, while the arrow’s direction indicates the force’s direction.
An accurate free body diagram allows us to analyze the forces acting on an object, determine if they are balanced or unbalanced, and predict the object’s motion. When the forces are balanced, the net force is zero, and the object remains in a state of equilibrium. Conversely, when the forces are unbalanced, the net force is nonzero, and the object accelerates in the direction of the net force.
Free body diagrams are not limited to stationary objects; they can also be used to analyze the forces acting on objects in motion. By considering acceleration, velocity, and the forces involved, we can determine the net force and its impact on an object’s motion. Free body diagrams are a fundamental tool for understanding the laws of motion and are an essential part of problem-solving in physics.
In conclusion, free body diagrams are crucial tools for analyzing the forces acting on objects in physics. They provide a visual representation of the forces, allowing us to determine the net force, predict motion, and understand the equilibrium of objects. Understanding and constructing accurate free body diagrams is essential for anyone studying physics.
How to Create Free Body Diagrams
Free body diagrams are used in physics to analyze the forces acting on an object. They provide a visual representation of the forces and their magnitudes and directions. Creating a free body diagram involves several steps to accurately represent the forces acting on the object.
To start, identify the object in question and draw a clear and labeled representation of it on a piece of paper. This will serve as the base for the free body diagram. Next, identify all the forces acting on the object. These can include forces such as gravity, normal force, friction, tension, and applied forces.
For each force, draw an arrow starting from the object and pointing in the direction of the force. The length of the arrow should represent the magnitude of the force. Use a scale or numerical values to accurately depict the magnitude. Label each arrow with the name of the force.
It is important to consider the direction of the force as well. If the force is horizontal, the arrow should be drawn horizontally. If the force is vertical, the arrow should be drawn vertically. If the force is at an angle, the arrow should be drawn at the corresponding angle.
Finally, review the free body diagram to ensure all forces are accurately represented and labeled. Double-check the directions and magnitudes of the forces to ensure they align with the given scenario. The free body diagram should provide a clear visual representation of the forces acting on the object, making it easier to analyze and solve physics problems.
Step-by-Step Guide on Creating Accurate Free Body Diagrams
In physics and engineering, free body diagrams are essential tools that help us understand the forces acting on an object. By creating an accurate free body diagram, we can analyze the forces and determine their magnitude, direction, and net effect on the object. Here is a step-by-step guide on how to create an accurate free body diagram:
1. Identify the object of interest
To begin, identify the object or system you want to analyze. This could be a single object or a collection of objects connected by forces.

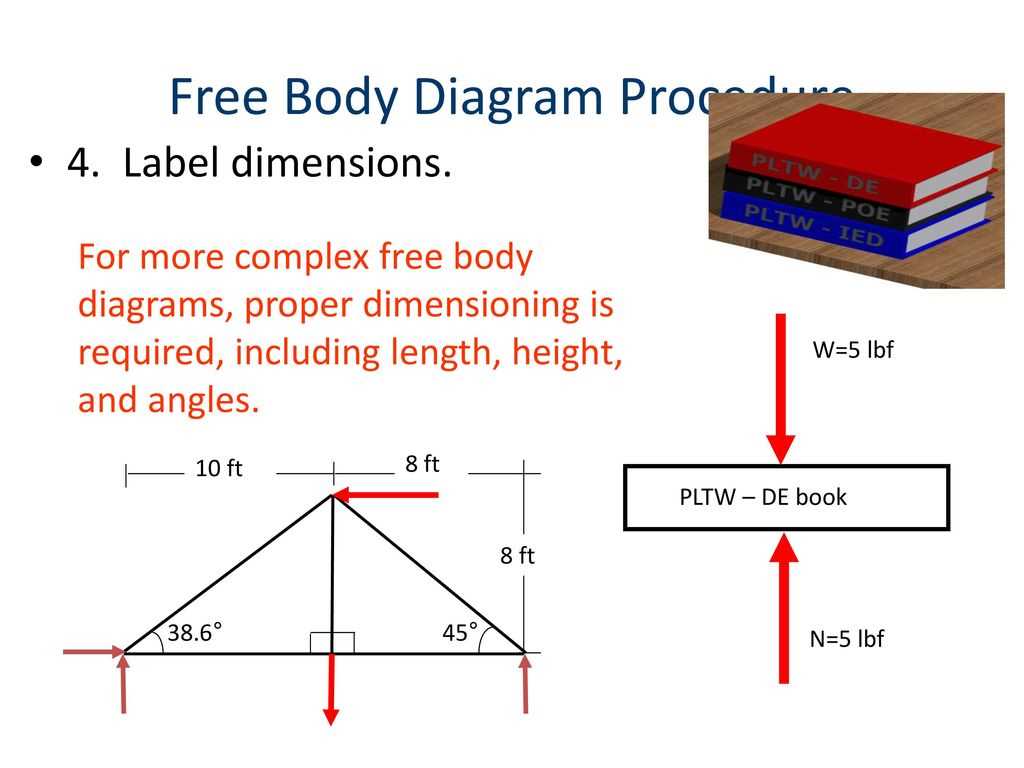

2. Isolate the object
To analyze the forces on the object, isolate it from its surroundings. Remove any unnecessary objects or elements that are not directly involved in the forces acting on the object.
3. Identify the forces
Identify all the forces acting on the object. These could include gravitational forces, applied forces, normal forces, friction, tension, or any other force acting on the object.
4. Draw arrows to represent the forces
For each force, draw an arrow to represent its magnitude and direction. Label each arrow with the corresponding force and its value, if known.

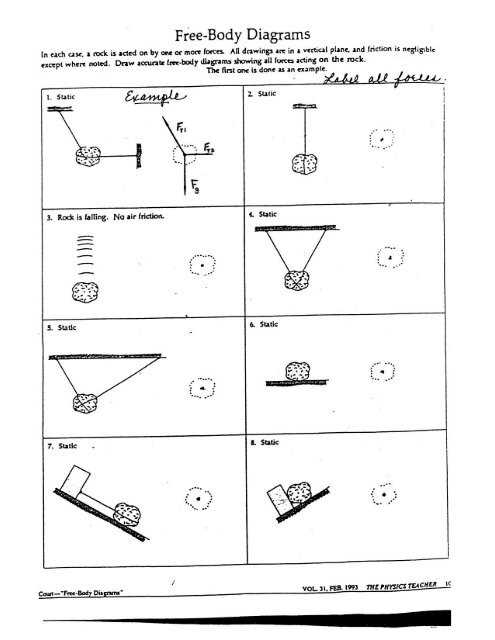

5. Choose a coordinate system
Choose a suitable coordinate system to define the positive directions. This will help in accurately representing the forces and analyzing their effects. Common coordinate systems include cartesian (x and y axes) or polar coordinates.
6. Resolve the forces
If the forces are not aligned with the chosen coordinate system, resolve them into their respective components. This will give a clearer understanding of the forces in different directions.
7. Indicate the net force
Determine the net force acting on the object by adding or subtracting the forces appropriately. Draw an arrow to represent the net force, starting from the object’s center of mass.
8. Add any necessary dimensions or measurements
If needed, include dimensions or measurements in the free body diagram. This can be helpful in further calculations or analysis.
By following these steps, you can create accurate free body diagrams that provide a comprehensive representation of the forces acting on an object. These diagrams are invaluable tools for understanding the physics of an object or system and can greatly enhance problem-solving abilities in the field of physics and engineering.
Common Mistakes to Avoid
When working on free body diagrams, there are several common mistakes that students often make. Avoiding these mistakes can help you create accurate and reliable diagrams.
Neglecting to include all forces
One common mistake is neglecting to include all forces acting on an object in the diagram. It’s important to consider all the forces, including gravitational force, normal force, frictional force, and any other external forces. Leaving out any force can lead to incorrect analysis and wrong conclusions.
Not indicating the direction of the forces
Another mistake is failing to indicate the direction of the forces in the diagram. It’s crucial to show the direction of each force with arrows pointing in the appropriate direction. This helps in understanding the overall forces acting on the object and the resulting motion.
Confusing the action and reaction pairs
Many students often confuse action and reaction pairs of forces. Remember that for every action, there is an equal and opposite reaction. It’s important to identify the correct pairs of forces and their corresponding directions in order to accurately represent the forces acting on the object.
Using incorrect scales or proportions
Using incorrect scales or proportions can lead to misleading diagrams and inaccurate analysis. It’s important to ensure that the lengths of the arrows representing forces are proportional to the magnitudes of the forces. This helps in visualizing and understanding the relative strengths of various forces.
Forgetting to label the forces
A common mistake is forgetting to label the forces in the diagram. Each force should be clearly labeled with its name or symbol, such as “Fg” for gravitational force or “Ff” for frictional force. Proper labeling helps in clear communication and understanding of the diagram.
By avoiding these common mistakes and paying attention to detail, you can create accurate and effective free body diagrams.
Tips on Avoiding Errors When Drawing Free Body Diagrams
Free body diagrams are a powerful tool for analyzing the forces acting on an object. However, it is important to draw them accurately in order to obtain meaningful results. Here are some tips to help you avoid common errors when drawing free body diagrams:
- Identify all the forces: Start by identifying all the forces acting on the object. This includes both external forces, such as gravity or applied forces, as well as internal forces, such as tension or normal forces.
- Choose a proper scale: When drawing the diagram, it is important to choose a proper scale that will allow you to accurately represent the magnitudes and directions of the forces. Make sure to label the scale on your diagram.
- Use arrows for vectors: Represent each force as a vector, using arrows to indicate both the magnitude and direction of the force. The length of the arrow should correspond to the magnitude of the force, while the direction of the arrow should point in the direction of the force.
- Label the forces: Clearly label each force on your diagram, using a descriptive name or symbol. This will make it easier to refer to the forces in your calculations.
- Consider Newton’s laws: Keep in mind Newton’s laws of motion when drawing your free body diagram. For example, if the object is in equilibrium, the sum of the forces in the x and y directions should be zero.
- Check for completeness: Before finalizing your free body diagram, double-check to make sure you have included all the relevant forces. Make sure you haven’t missed any forces or included any unnecessary ones.
By following these tips, you can avoid errors and create accurate free body diagrams that will aid in the analysis of forces acting on an object.
Sample Free Body Diagrams
A free body diagram is a visual representation of the forces acting on an object. It helps us understand and analyze the motion and equilibrium of the object. Here are some sample free body diagrams:
1. Free Body Diagram of a Falling Object
A free body diagram of a falling object includes the force of gravity acting downwards and the air resistance acting upwards. This diagram can help us understand why an object falls at a certain rate and how air resistance affects its motion.
2. Free Body Diagram of a Car on an Incline
A free body diagram of a car on an incline includes the force of gravity acting downwards, the normal force perpendicular to the incline, and the friction force parallel to the incline. This diagram can help us analyze the forces that determine whether the car will slide down or stay in place on the incline.
3. Free Body Diagram of a Block on a Ramp
A free body diagram of a block on a ramp includes the force of gravity acting downwards, the normal force perpendicular to the ramp, and the friction force parallel to the ramp. This diagram can help us understand the forces that affect the motion of the block as it slides up or down the ramp.
In conclusion, free body diagrams are a useful tool in physics to analyze the forces acting on an object. By visually representing these forces, it becomes easier to understand the motion and equilibrium of the object in different scenarios.
Example Free Body Diagrams With Detailed Explanations
In this section, we will provide several examples of free body diagrams and provide a detailed explanation for each of them. These examples will help you understand how to analyze forces acting on objects and draw accurate free body diagrams.
Example 1: Block on a Frictionless Surface
A block of mass 10 kg is placed on a frictionless surface. The only force acting on the block is the force of gravity, which can be represented by a downward arrow with magnitude mg, where m is the mass of the block and g is the acceleration due to gravity. The free body diagram for this situation will only include the force of gravity.
Free body diagram:
- Force of gravity (downward arrow)
Explanation: Since there is no friction or any other external force acting on the block, the only force present is the force of gravity pulling the block downwards.
Example 2: Box on an Inclined Plane
A box of mass 5 kg is placed on an inclined plane with an angle of 30 degrees. The box is at rest, and two forces act on it: the force of gravity and the normal force exerted by the inclined plane. The force of gravity can be represented by a downward arrow with magnitude mg, and the normal force can be represented by an arrow perpendicular to the plane. The free body diagram for this situation will include both the force of gravity and the normal force.
Free body diagram:
- Force of gravity (downward arrow)
- Normal force (arrow perpendicular to the plane)
Explanation: The force of gravity pulls the box downwards, while the normal force exerted by the inclined plane counteracts the force of gravity and prevents the box from sinking into the plane.
Example 3: Spring and Mass System
A mass is attached to a spring and placed on a horizontal surface. When the mass is displaced from its equilibrium position, it experiences a restoring force from the spring. The free body diagram for this situation will include the force of gravity, the normal force from the surface, and the spring force.
Free body diagram:
- Force of gravity (downward arrow)
- Normal force (upward arrow)
- Spring force (leftward or rightward arrow, depending on the direction of displacement)
Explanation: The force of gravity acts downwards, the normal force acts upwards to support the mass, and the spring force acts in the opposite direction of the displacement to restore the mass to its equilibrium position.
These examples demonstrate how to analyze and represent forces acting on objects through free body diagrams. By understanding and practicing the process of drawing free body diagrams, you will be able to accurately determine the forces acting on an object, which is crucial for solving physics problems and understanding the behavior of objects under various conditions.
