Master Kinematics Motion Graphs with our Comprehensive Worksheet Answers
Understanding kinematics motion graphs is essential for mastering the principles of physics and solving complex problems related to motion. In physics, motion graphs are graphical representations of an object’s position, velocity, and acceleration over time, providing valuable insights into the object’s motion.
This article aims to provide comprehensive answers to the kinematics motion graphs worksheet, assisting students in understanding and interpreting various types of motion graphs. It will cover the key concepts associated with motion graphs, including position-time graphs, velocity-time graphs, and acceleration-time graphs.
Through this guide, students will learn how to analyze and interpret motion graphs, calculate important parameters such as displacement, velocity, and acceleration, and draw conclusions about the object’s motion based on the graph’s shape and characteristics. The answers provided will serve as a valuable resource for students seeking to strengthen their understanding of kinematics and improve their problem-solving skills in physics.
Kinematics Motion Graphs Worksheet Answers

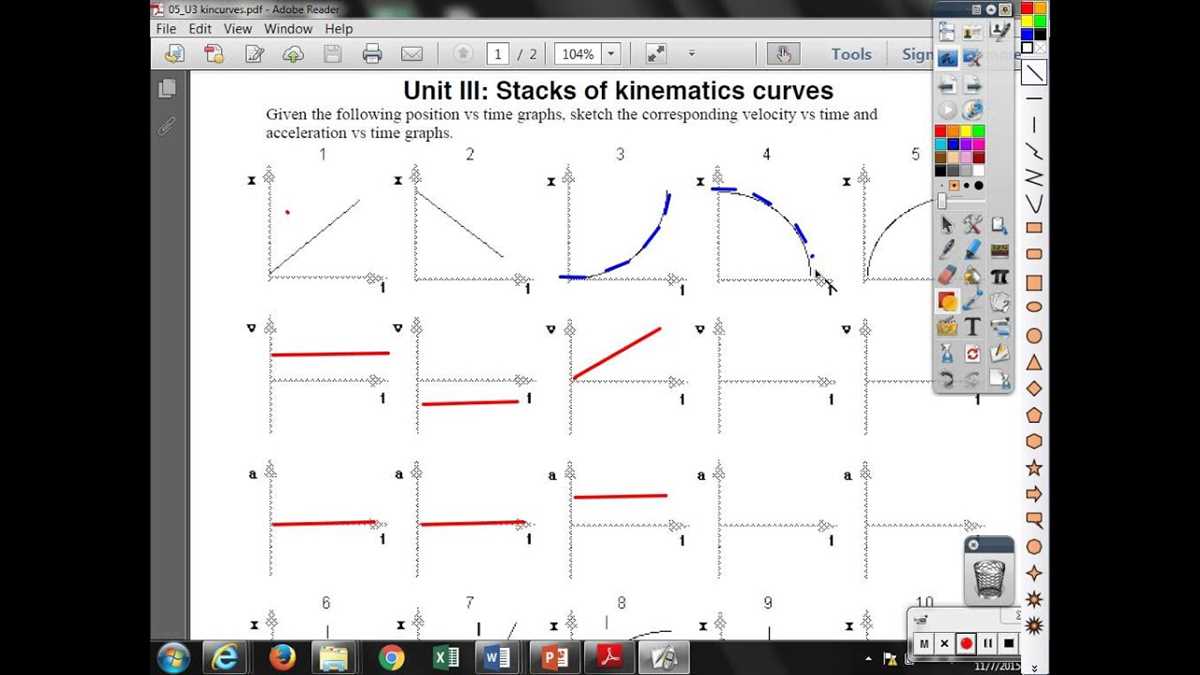

When studying kinematics, it is important to understand how different types of motion are represented on graphs. The kinematics motion graphs worksheet provides students with an opportunity to practice analyzing and interpreting these graphs. By answering the questions in the worksheet, students can strengthen their understanding of motion concepts and develop skills in graph interpretation.

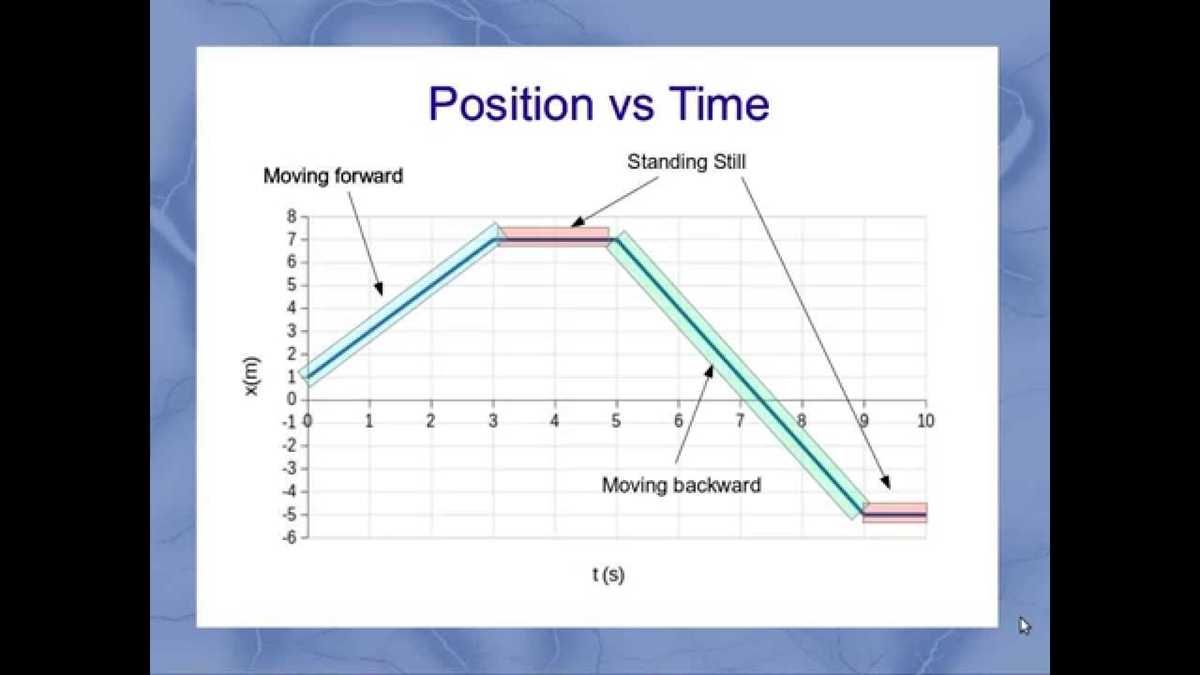

Position vs. Time Graph: In this section of the worksheet, students are presented with various position vs. time graphs. They are asked to analyze the shape of the graph and determine the object’s direction of motion. Additionally, students must identify the object’s instantaneous velocity and acceleration at different points on the graph. This exercise helps students understand how position, velocity, and acceleration are related and how they can be determined from a position vs. time graph.
Velocity vs. Time Graph: The second section of the worksheet focuses on velocity vs. time graphs. Students are given different graphs and are asked to analyze the slope of the graph to determine the object’s acceleration. They also need to interpret changes in the graph to identify specific types of motion, such as constant velocity, uniform acceleration, and deceleration. This exercise helps students develop their ability to interpret velocity vs. time graphs and understand how changes in velocity relate to acceleration.
By completing the kinematics motion graphs worksheet, students can deepen their understanding of motion and develop their skills in graph interpretation. This knowledge is essential for solving more complex kinematics problems and applying the principles of motion in real-life situations.
Understanding Kinematics Concepts
Kinematics is the branch of physics that deals with the motion of objects without considering the causes of this motion. It focuses on describing the position, velocity, and acceleration of objects and how they change over time. To understand kinematics concepts, it is important to have a grasp of key terms and equations.
Position refers to the location of an object relative to a reference point. It is usually expressed in terms of coordinates, such as x, y, and z. The change in position over time is called displacement.
Example: An object moves 5 meters to the right from its initial position. The displacement is +5 meters.
Velocity is the rate at which an object’s position changes with respect to time. It is a vector quantity, meaning it has both magnitude and direction. The average velocity is calculated by dividing the change in position by the change in time.
Example: An object travels 30 meters to the right in 10 seconds. The average velocity is +3 meters per second to the right.
Acceleration is the rate at which an object’s velocity changes with respect to time. It is also a vector quantity. The average acceleration is calculated by dividing the change in velocity by the change in time.
Example: An object increases its velocity from 2 meters per second to 5 meters per second in 3 seconds. The average acceleration is +1.0 meters per second squared.
By understanding these basic kinematics concepts, one can analyze the motion of objects and create motion graphs to visualize and interpret the data. Such graphs include position-time graphs, velocity-time graphs, and acceleration-time graphs, which help in understanding the motion characteristics of an object.
Interpreting Position-Time Graphs
Position-time graphs provide a visual representation of an object’s movement over a specific period. By analyzing these graphs, we can extract valuable information about the object’s motion, velocity, and displacement. The graph typically consists of the position of the object on the y-axis and the time on the x-axis. Let’s dive deeper into interpreting position-time graphs.
1. Slope: The slope of a position-time graph represents the object’s velocity. If the slope is positive, it indicates that the object is moving in the positive direction (usually to the right). If the slope is negative, it means that the object is moving in the negative direction (usually to the left).
2. Steepness of the slope: The steepness of the slope reflects the object’s speed. The steeper the slope, the faster the object is moving, and vice versa. A horizontal line on the graph indicates that the object is at rest.
3. Area under the graph: The area under the graph represents the object’s displacement. If the graph is above the x-axis, the displacement is positive, indicating the object has moved in the positive direction. If the graph is below the x-axis, the displacement is negative, implying movement in the negative direction.
4. Curvature of the graph: The curvature of the graph can provide insights into the object’s acceleration. If the curve is upward, it suggests that the object is accelerating in the positive direction. If the curve is downward, it indicates acceleration in the negative direction.
To further understand position-time graphs, it is essential to calculate the slope, interpret the steepness, observe the area, and analyze the curvature. By doing so, we can extract valuable information about an object’s motion and understand its behavior better.
Analyzing Velocity-Time Graphs
Velocity-time graphs are visual representations of an object’s motion over time. By analyzing these graphs, we can gather useful information about the object’s velocity and acceleration. Understanding how to interpret velocity-time graphs is crucial in studying kinematics and motion.
A key feature of velocity-time graphs is that the slope of the graph represents the object’s acceleration. If the graph has a positive slope, it indicates that the object is accelerating in the positive direction. On the other hand, a negative slope suggests that the object is accelerating in the negative direction. A horizontal line indicates that the object is moving at a constant velocity, while a vertical line represents a sudden change in velocity.
Example:
Let’s consider a scenario where a car is initially at rest and then accelerates uniformly to a velocity of 30 m/s in 10 seconds. The velocity-time graph for this motion would have a positive slope, indicating a constant acceleration. The slope of the graph can be calculated by dividing the change in velocity (30 m/s – 0 m/s = 30 m/s) by the change in time (10 s – 0 s = 10 s), resulting in an acceleration of 3 m/s^2.
Another important aspect of velocity-time graphs is that the area under the graph represents the displacement of the object. In simple terms, the area between the graph and the time axis represents the distance traveled by the object. If the graph has a triangular shape, the area can be calculated by multiplying the base (time) and the height (velocity) and then dividing by 2. For more complex shapes, the area can be divided into smaller sections and calculated individually.
By carefully analyzing velocity-time graphs, we can determine important information about an object’s motion, such as its acceleration and displacement. These graphs provide a visual representation of how velocity changes over time, making them a valuable tool in the study of kinematics and motion.
Calculating Acceleration from Motion Graphs
In physics, motion graphs are used to represent the relationship between an object’s position, time, velocity, and acceleration. These graphs provide a visual representation of how an object’s motion changes over time. One important aspect of analyzing motion graphs is determining the object’s acceleration.
Acceleration is the rate at which an object’s velocity changes over time. It can be calculated by analyzing the slope of the velocity-time graph. The slope of the graph represents the change in velocity divided by the change in time. A steeper slope indicates a greater rate of change, meaning a higher acceleration.
To calculate acceleration from a motion graph, you first need to determine the change in velocity and the change in time. This can be done by identifying the rise and run of the slope. The rise represents the change in velocity, and the run represents the change in time. Dividing the change in velocity by the change in time gives you the acceleration.
For example, let’s say you have a velocity-time graph where the velocity increases from 0 m/s to 10 m/s over a time interval of 2 seconds. To calculate the acceleration, you would divide the change in velocity (10 m/s – 0 m/s = 10 m/s) by the change in time (2 seconds), resulting in an acceleration of 5 m/s^2.
It’s important to note the direction of the acceleration as well. If the velocity-time graph has a negative slope, it indicates that the object is decelerating or slowing down. In this case, the acceleration would be a negative value, indicating a decrease in velocity over time.
By analyzing motion graphs and calculating acceleration, physicists can better understand how objects move and change their motion. This information is essential in various fields such as engineering, sports science, and transportation.
Solving Problems Using Motion Graphs
When studying kinematics, motion graphs provide valuable information about an object’s position, velocity, and acceleration. These graphs allow us to analyze and solve various problems related to motion.
One common type of motion graph is the position-time graph. This graph displays an object’s position on the y-axis and time on the x-axis. By examining the slope of the graph, we can determine the object’s velocity. A positive slope indicates a positive velocity, while a negative slope indicates a negative velocity. The steeper the slope, the greater the velocity. Additionally, the area under the graph represents the displacement of the object. By calculating the area, we can determine how far the object has traveled.
Another type of motion graph is the velocity-time graph. This graph displays an object’s velocity on the y-axis and time on the x-axis. By analyzing the slope of the graph, we can determine the object’s acceleration. A positive slope indicates a positive acceleration, while a negative slope indicates a negative acceleration. The steeper the slope, the greater the acceleration. Additionally, the area under the graph represents the displacement of the object. The area above the x-axis represents the distance traveled in the positive direction, while the area below the x-axis represents the distance traveled in the negative direction.
By utilizing these motion graphs, we can solve problems such as determining an object’s position, velocity, acceleration, displacement, and distance traveled at a particular time. Through careful analysis of the graphs and the application of kinematic equations, we can accurately describe and understand various motion scenarios. These graphs provide a visual representation of an object’s motion, making it easier to interpret and solve complex problems.
Applying Kinematics Concepts to Real-World Examples
Understanding and applying kinematics concepts is crucial in analyzing and predicting the motion of objects in real-world scenarios. By utilizing kinematics equations, motion graphs, and considering various factors such as velocity, acceleration, and time, we can better understand and describe the motion of objects in different situations.
One common real-world example where kinematics concepts are applied is in the analysis of car accidents. By examining the motion graphs of vehicles involved in accidents, investigators can determine key information such as the initial velocity, acceleration, and time of impact. This data is essential in understanding the sequence of events leading up to the accident and can be used to determine fault or contribute to improvements in car safety.
Another example is in sports. By analyzing the motion of athletes in sports such as running, jumping, or throwing, kinematics concepts can be used to improve performance. Motion graphs can help identify areas where an athlete may need to refine their technique, adjust their acceleration, or optimize their timing to achieve better results.
Additionally, kinematics concepts are crucial in physics and engineering fields. Understanding how objects move through space and time is essential in designing structures, calculating trajectories, and predicting the behavior of systems. Whether it’s designing a roller coaster, launching a rocket, or analyzing the motion of planets, kinematics concepts provide the foundation for these calculations and predictions.
In summary, kinematics concepts are widely applied to real-world examples in various fields ranging from car accident investigations to sports performance analysis to physics and engineering. By utilizing kinematics equations and motion graphs, we can better understand and predict the motion of objects in different scenarios. These concepts play a crucial role in improving safety, enhancing performance, and advancing scientific understanding and technological developments.
